3D Prints

Remembering the things I've designed and printed.

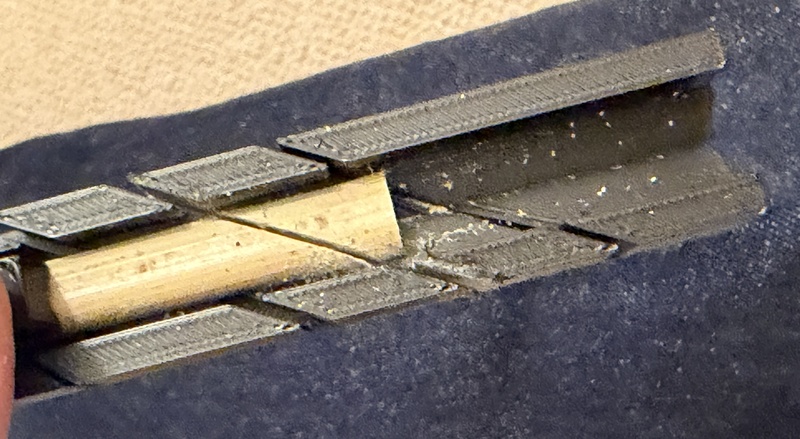

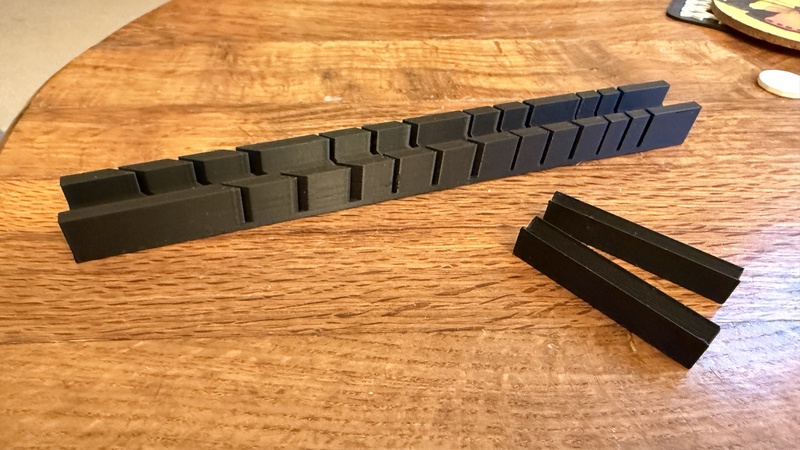

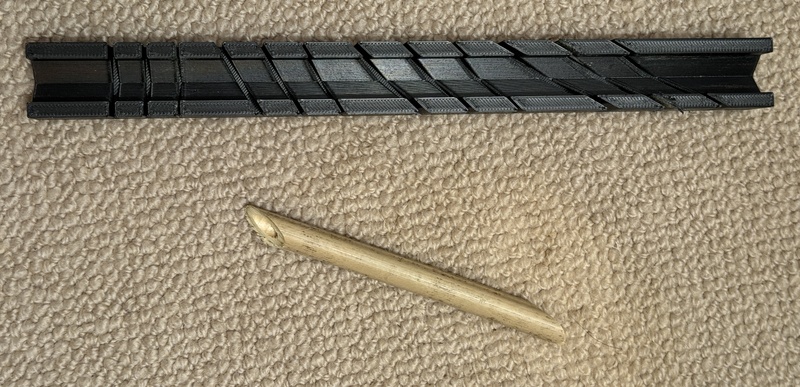

Dowel cutter

Useful for any kind of dowel/tube cutting, but this was born when I was wanting to make a clay trimming tool (wheel throwing), which is often cut from trimmed bamboo.

Recommend you use a (soft) clamp and the helper pieces to secure the dowel/tube in place when cutting.

2026-02

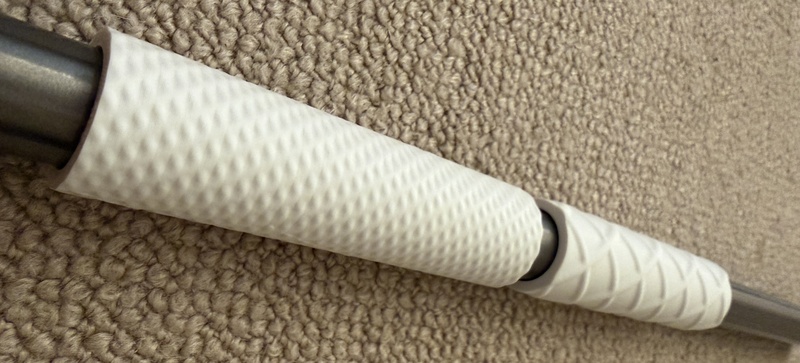

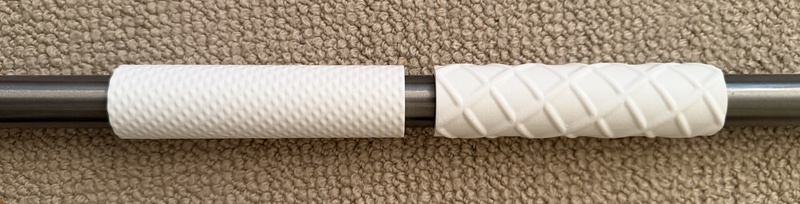

Clay texture roller

Clay texture roller. The pattern tubes are slid onto a retired curtain rail (that is insanely robust).

2026-01

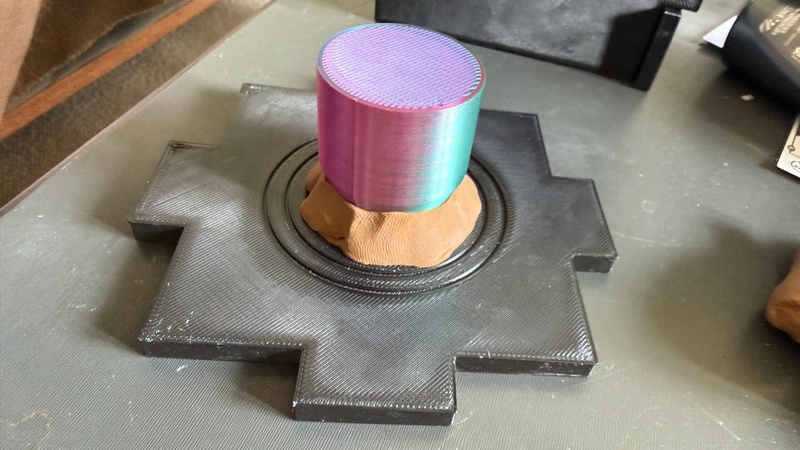

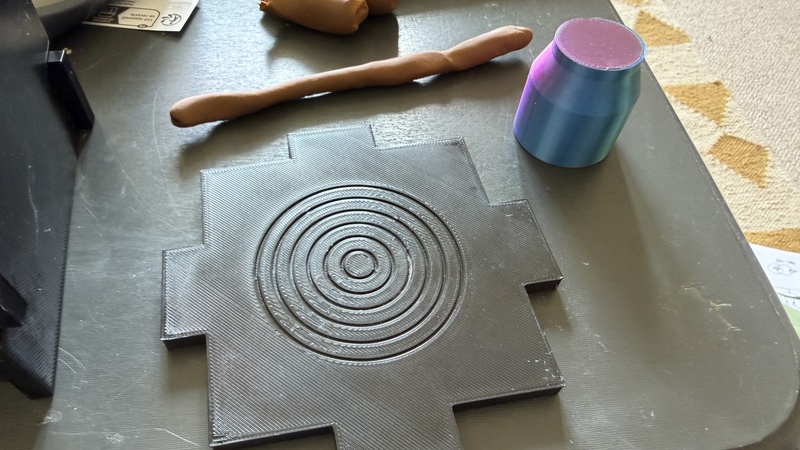

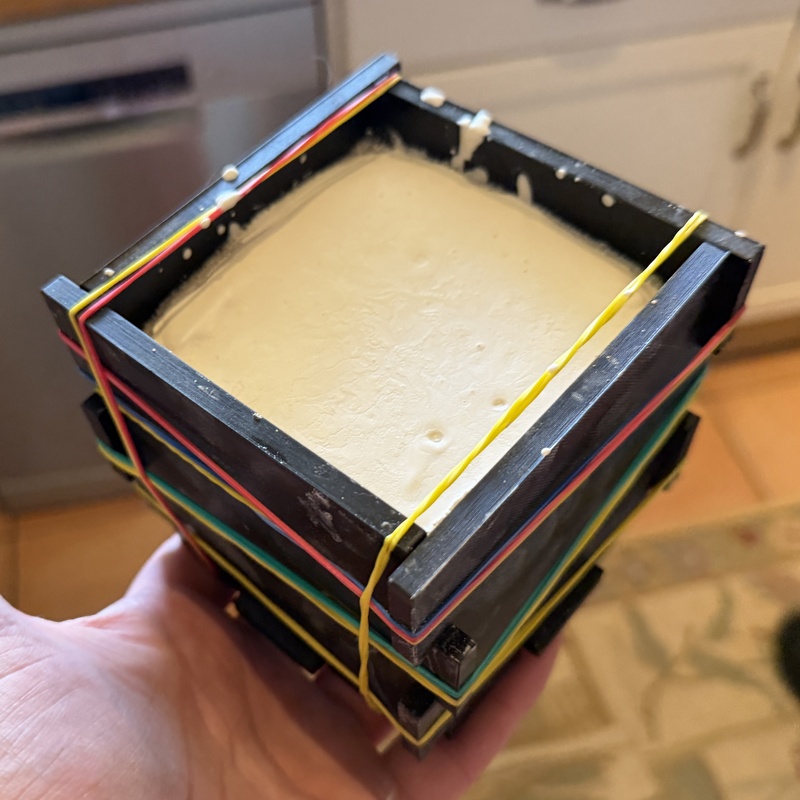

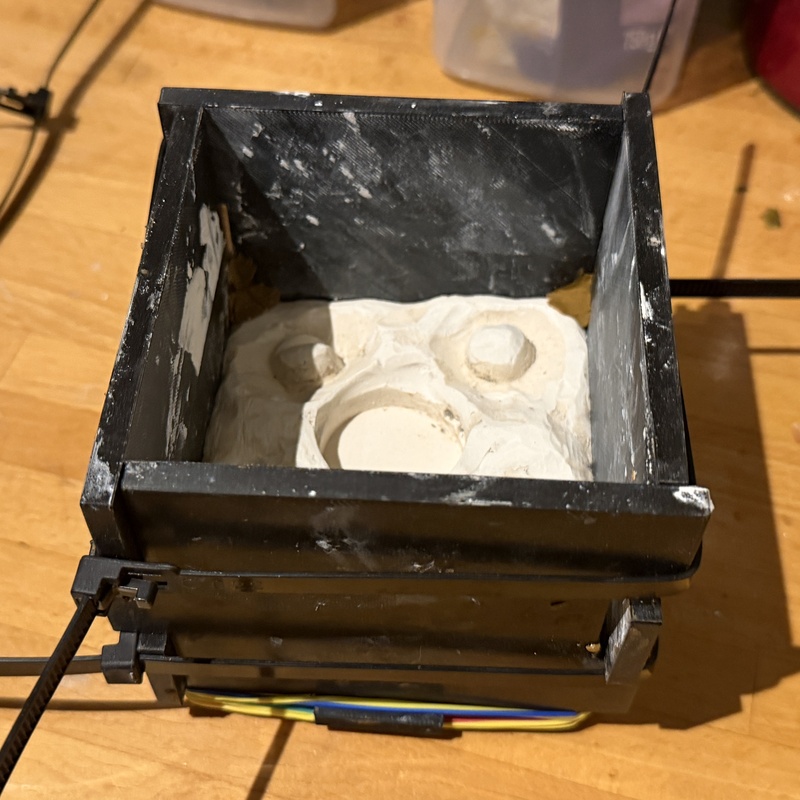

Clay slip mold box

Experimenting with making a mold box for slip. Partial success (leakage issues!).

2026-01

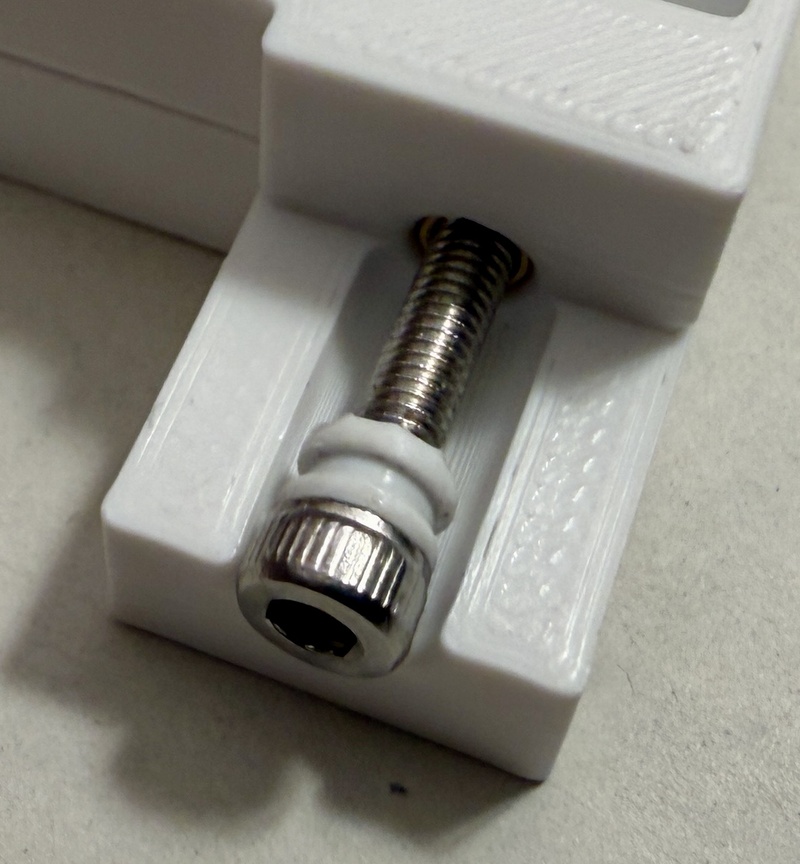

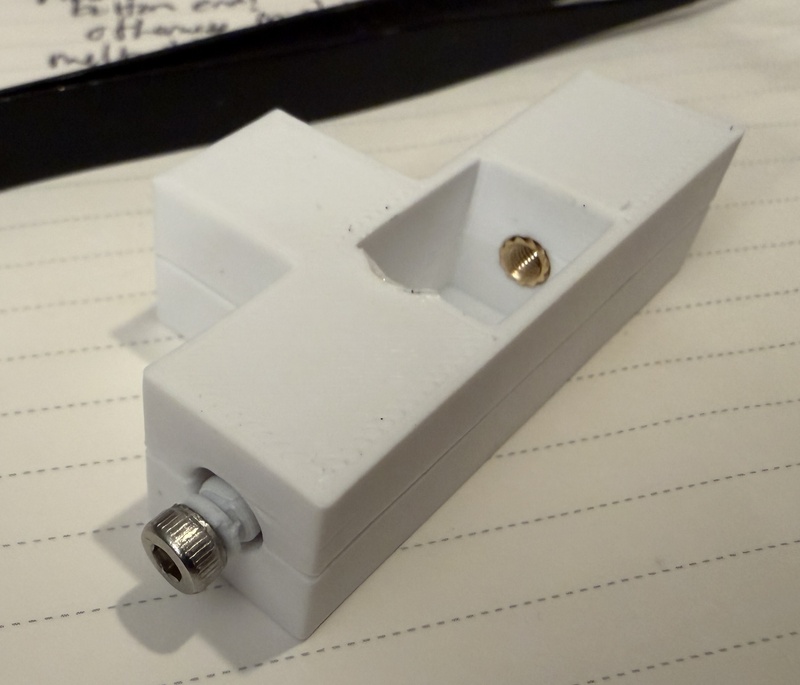

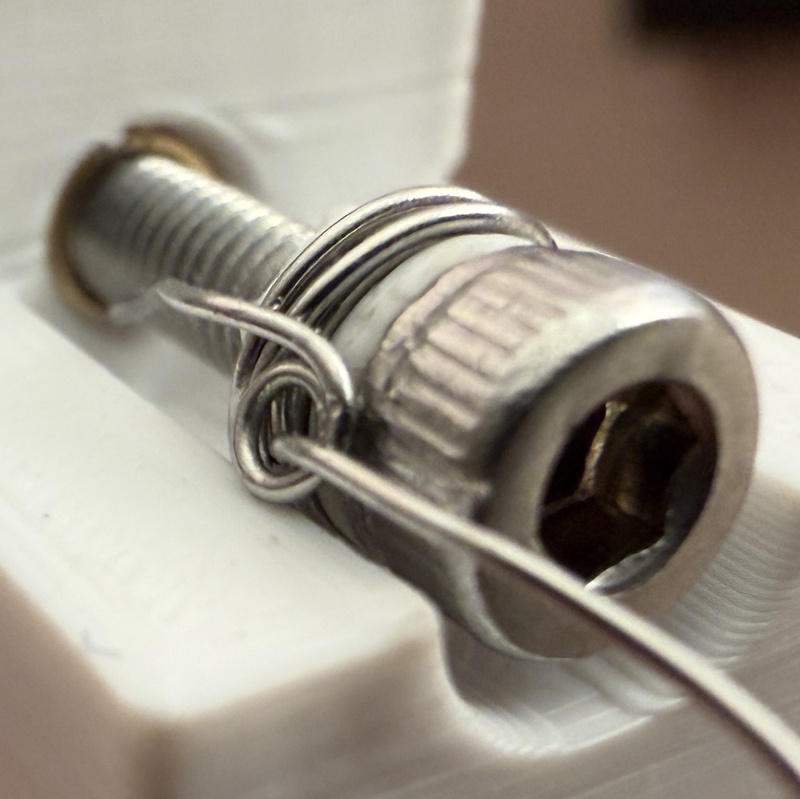

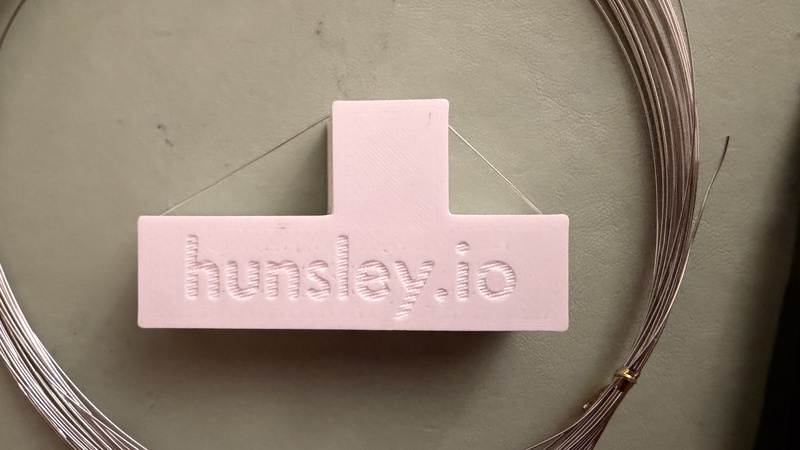

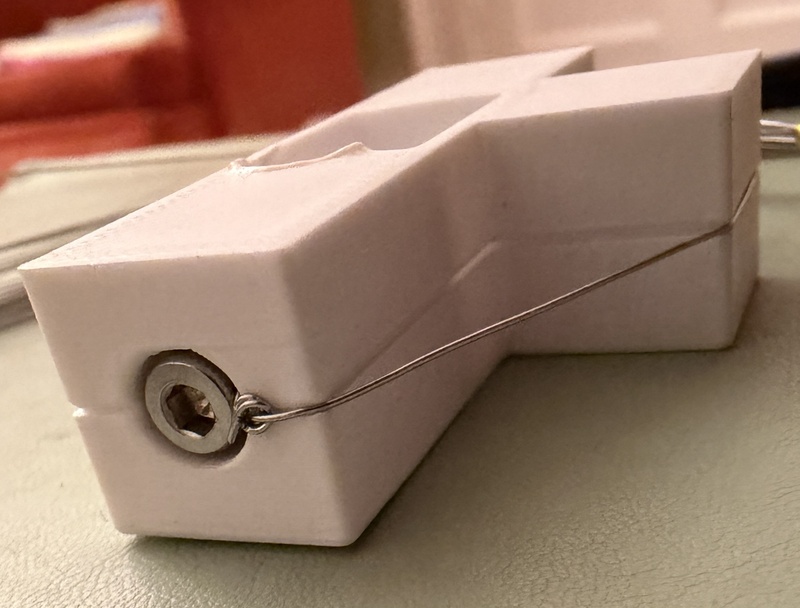

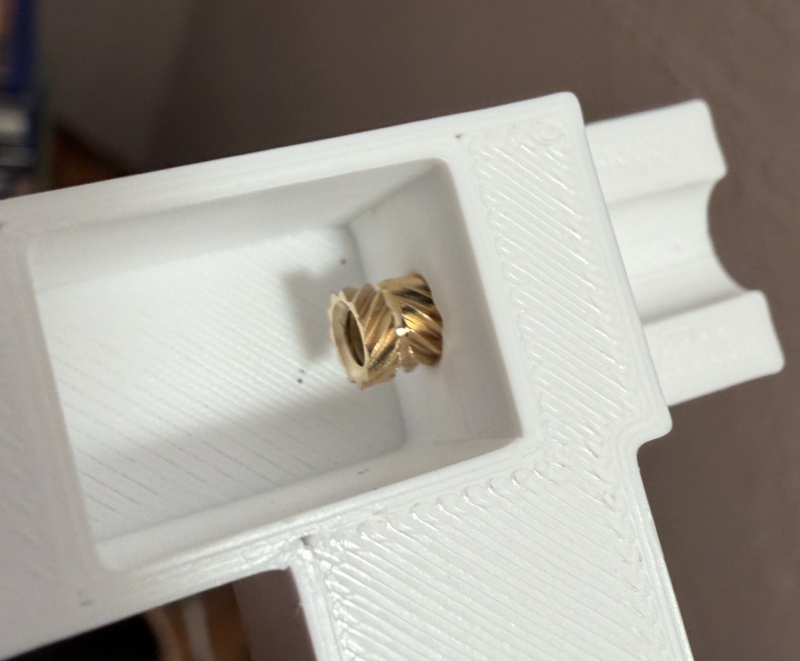

Clay bevelling tool

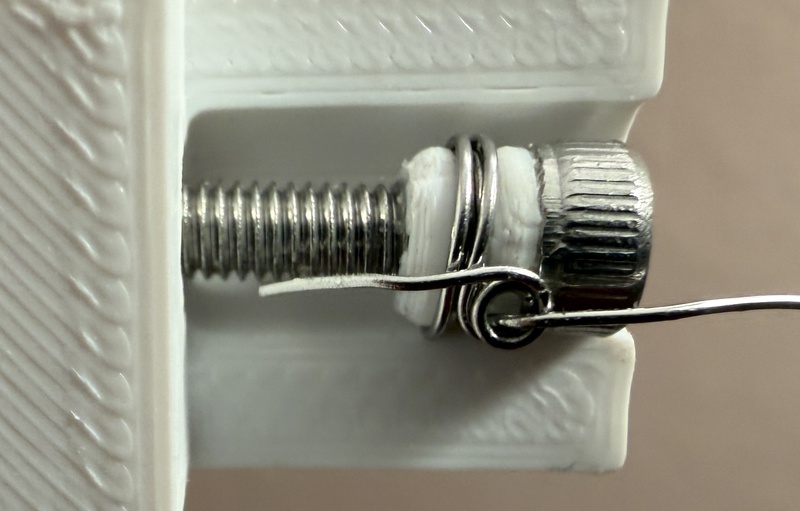

My reverse-engineered version of the ones you can buy online for about 15 quid. Seems to work. Wrapping 0.4mm wire around a screw under the head (without stressing it) was a challenge.

2026-01

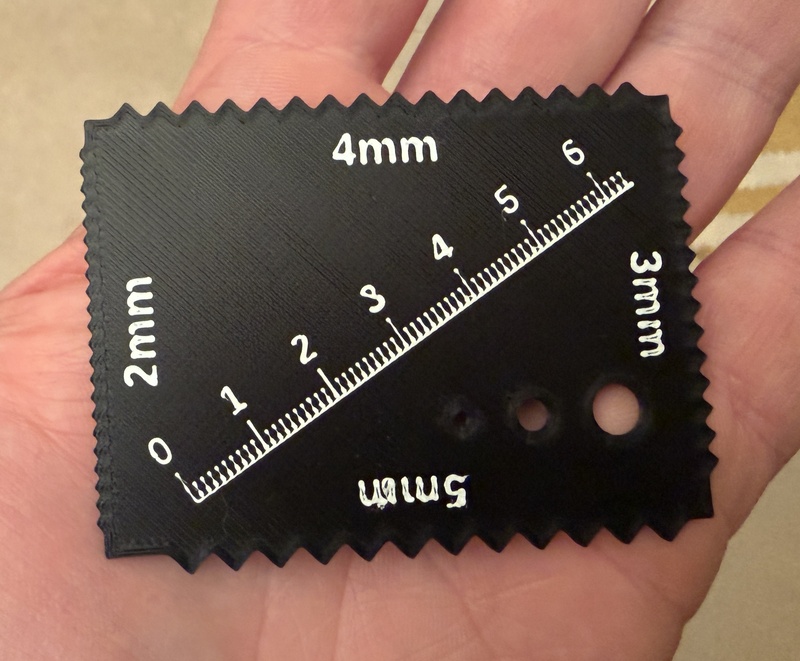

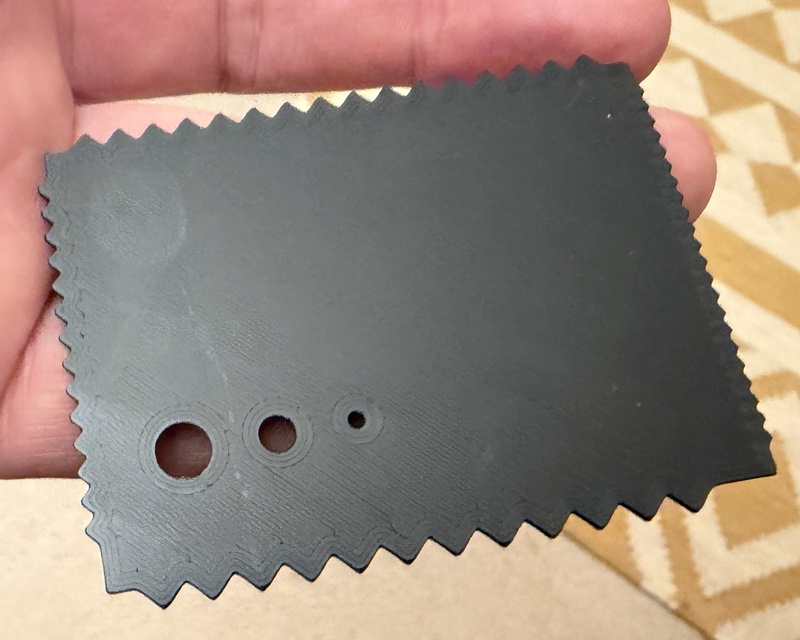

Clay scratcher tool

Has different scratching sizes, and includes a little rule. Has holes of various sizes but printing accurate hole diameters of small sizes is tricksy so maybe of limited usefulness.

2026-01

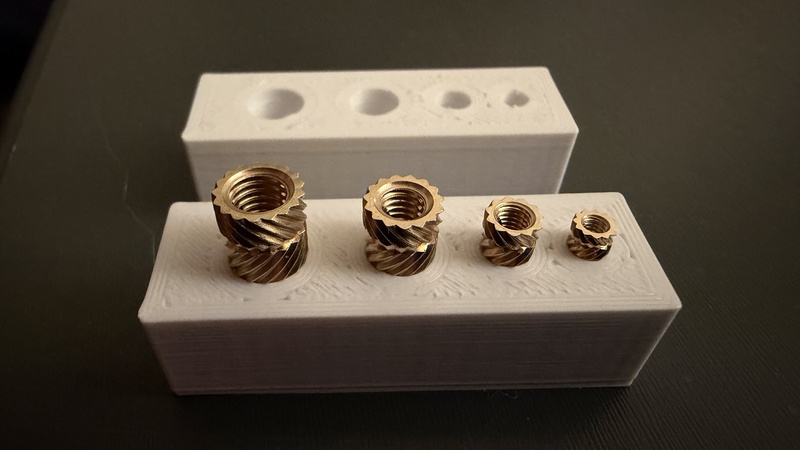

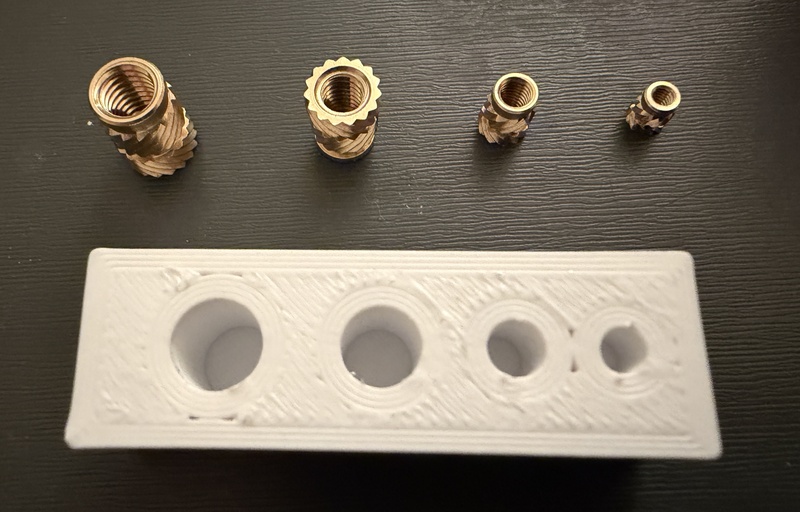

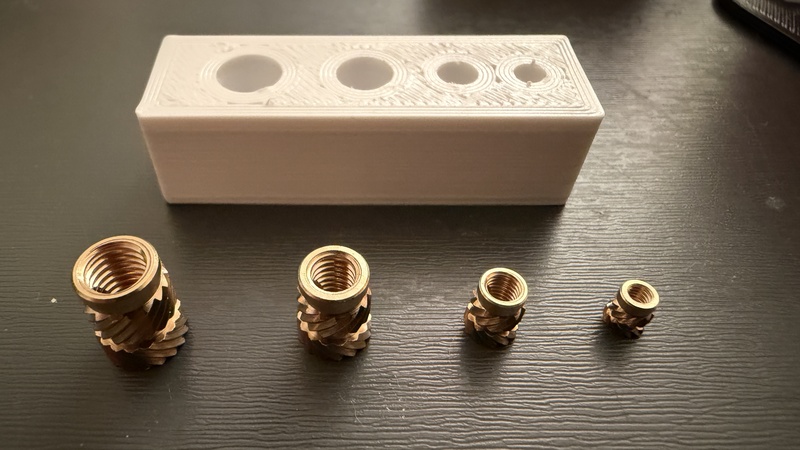

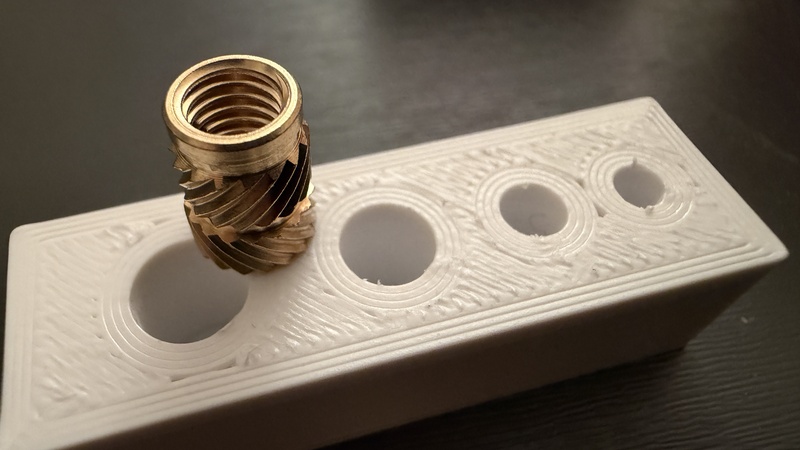

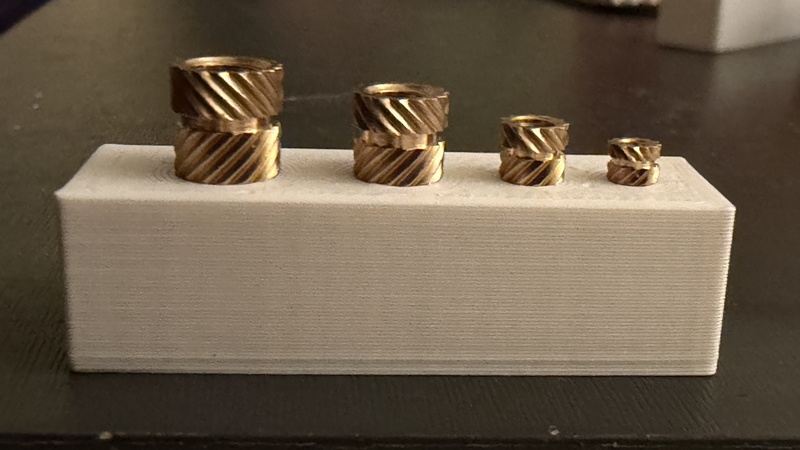

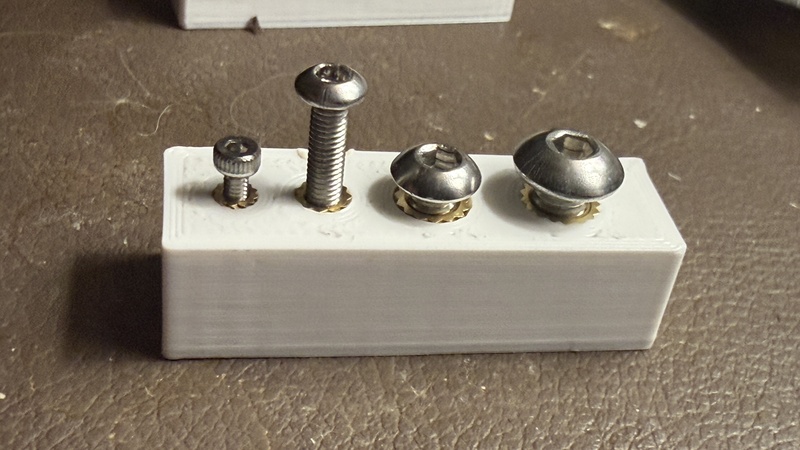

Brass inserts demo block

Demo piece for brass inserts (M3 - M6)

2026-01

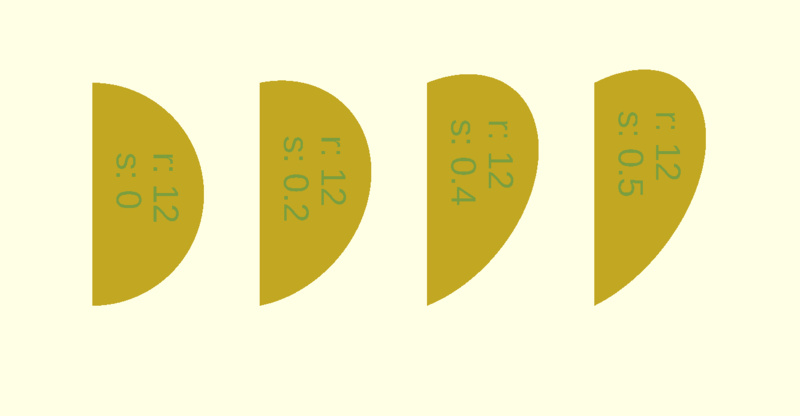

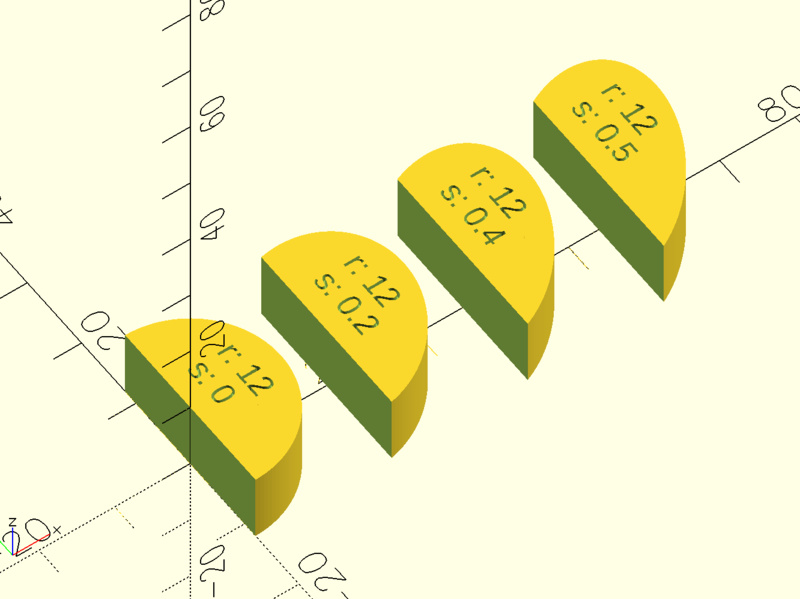

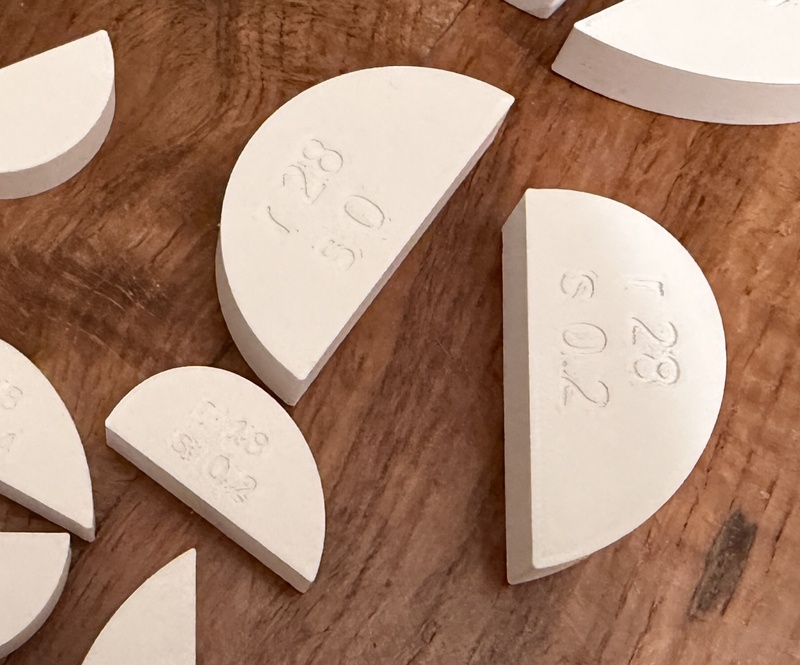

Handle formers (clay)

Just your regular handle-forming helpers (when making making cup, jugs etc.)

2026-01

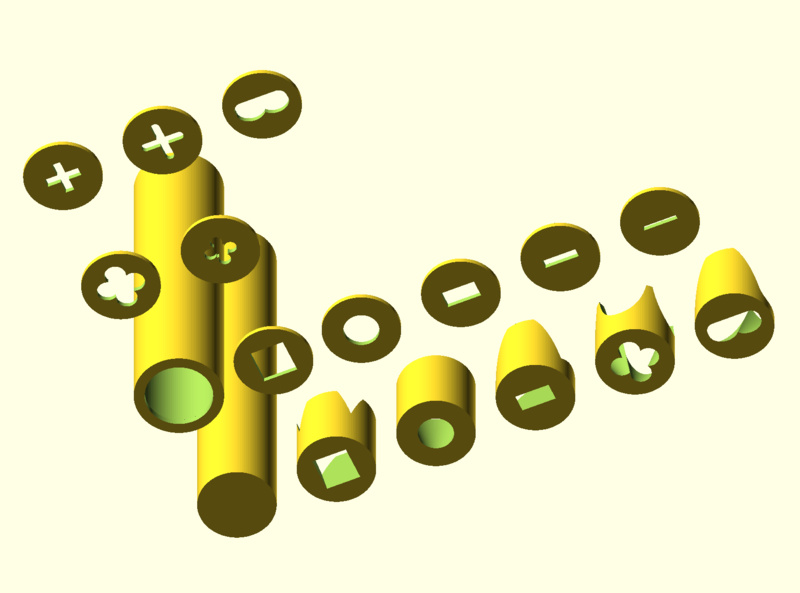

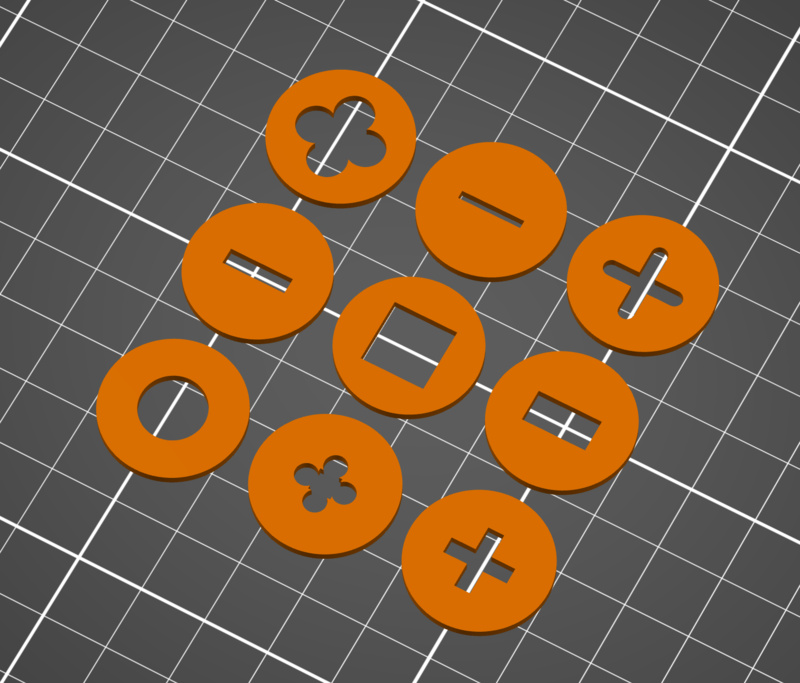

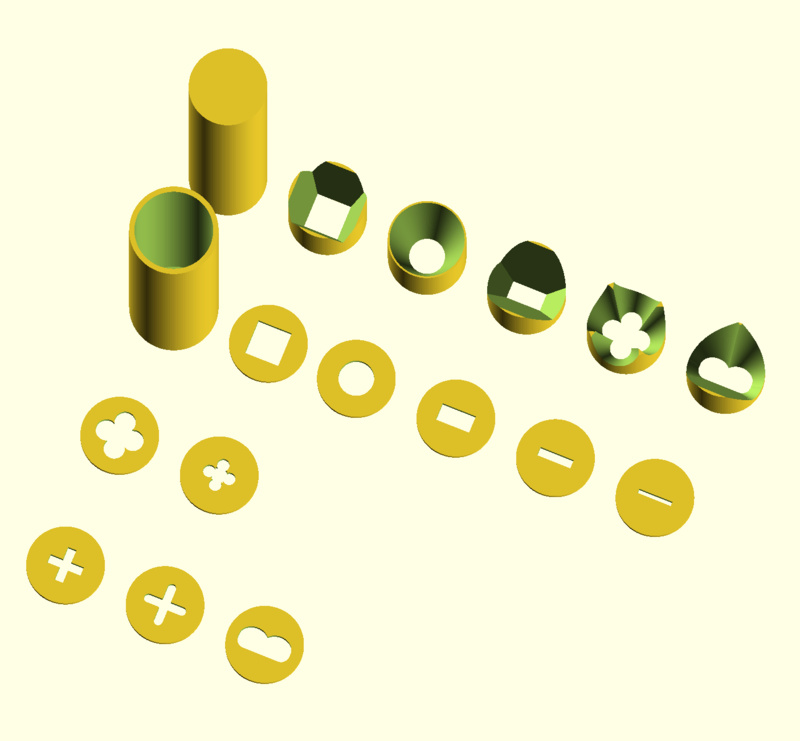

Slip extruder (clay)

An attempt to make slip extruder. Flawed; the slip tends to get down between the plunger and outer case. To be revisited.

2026-01

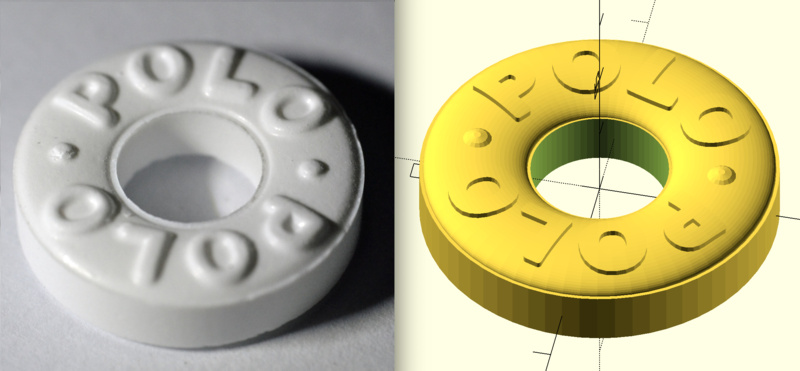

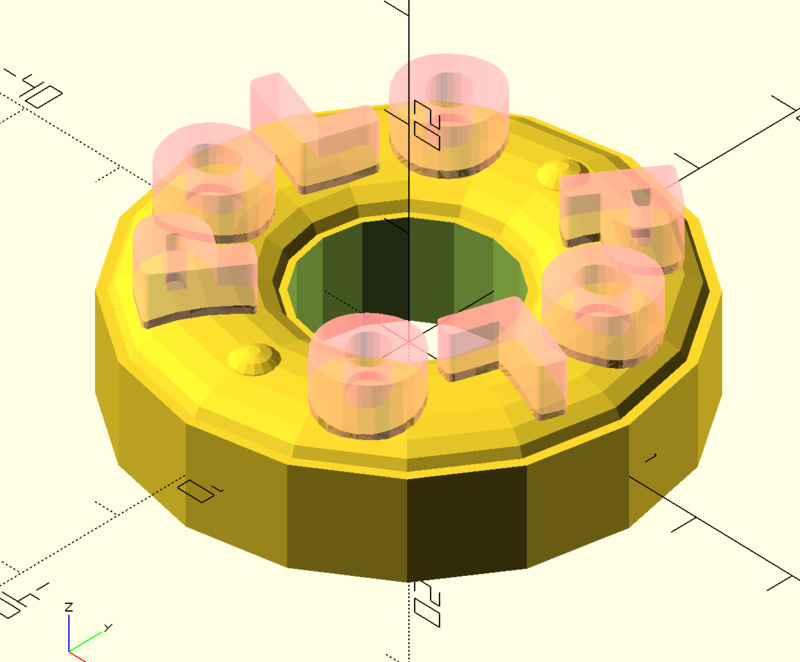

The print with the hole

This large Polo print became a fridge-magnet (neodymium magnets).

2026-01

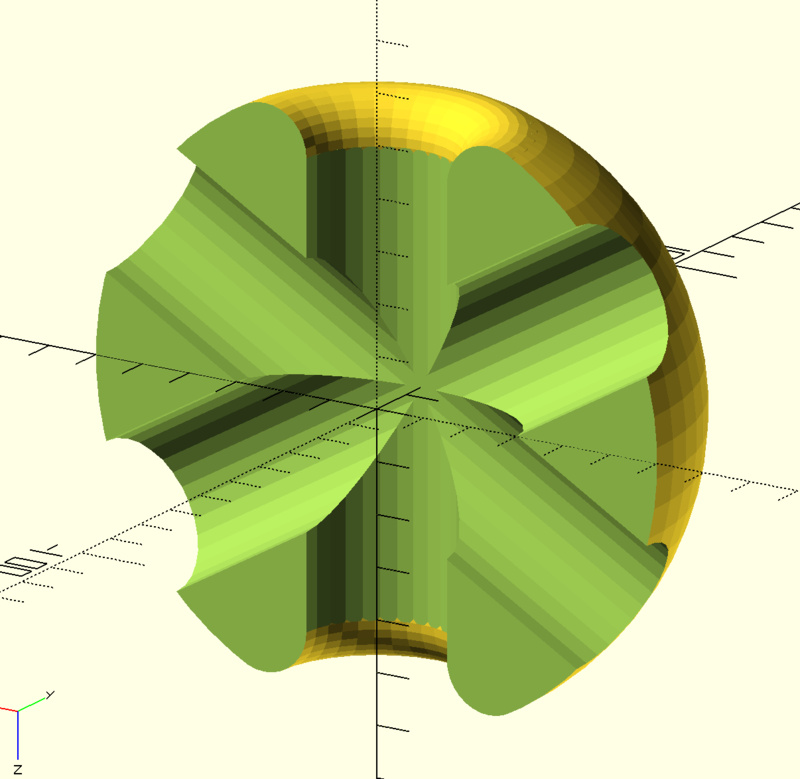

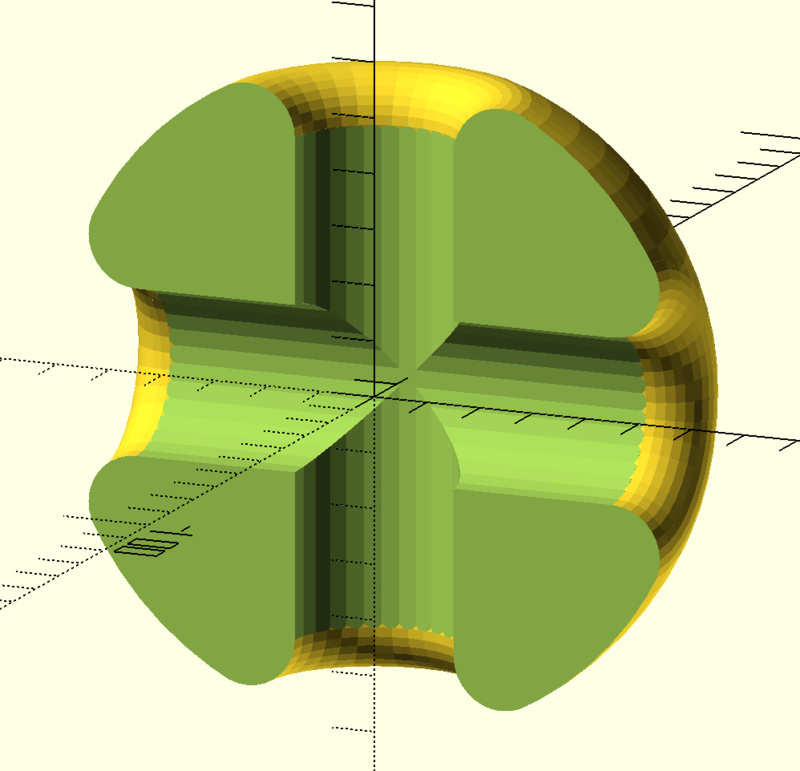

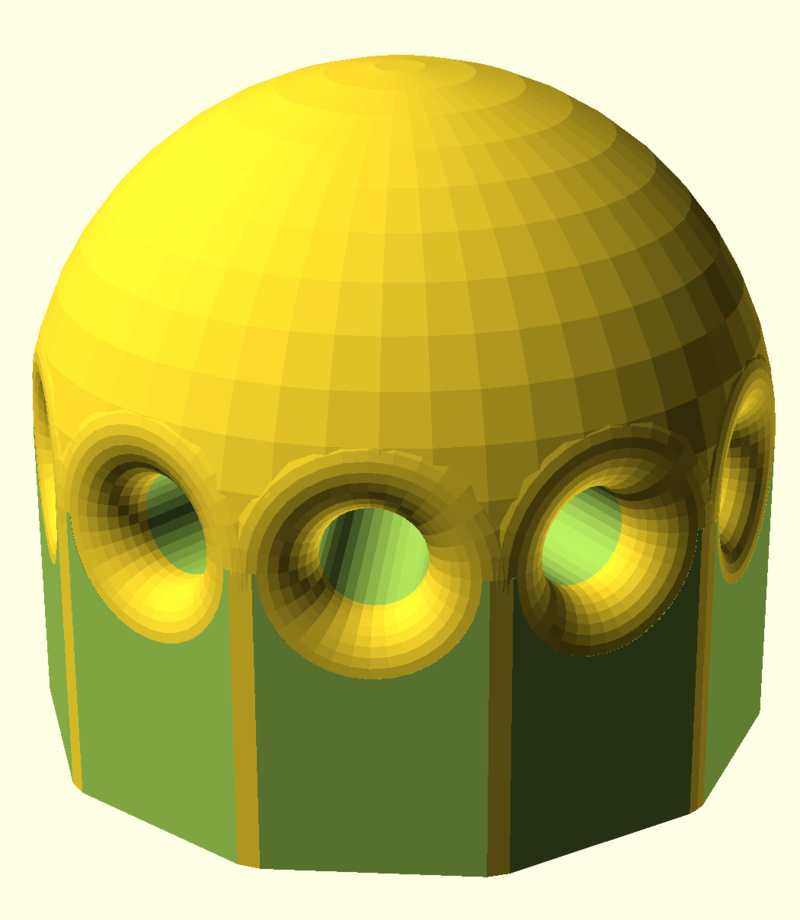

String/rope bevelled hole maker (helper)

Lib for making smooth (bevelled) holes, ideal for running string/rope into, but also just looks nice.

Design for the pentapus rope spider project, but not actual used in it yet.

2025-12

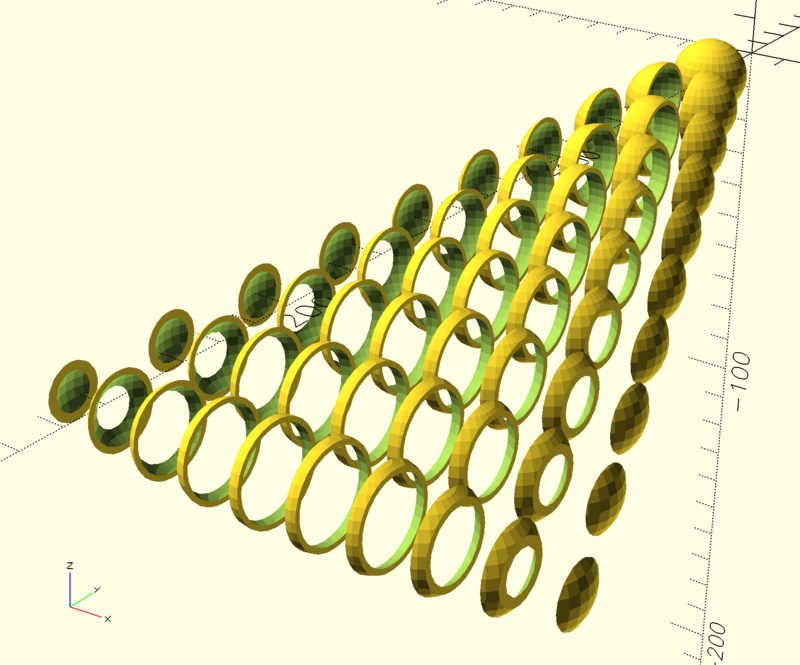

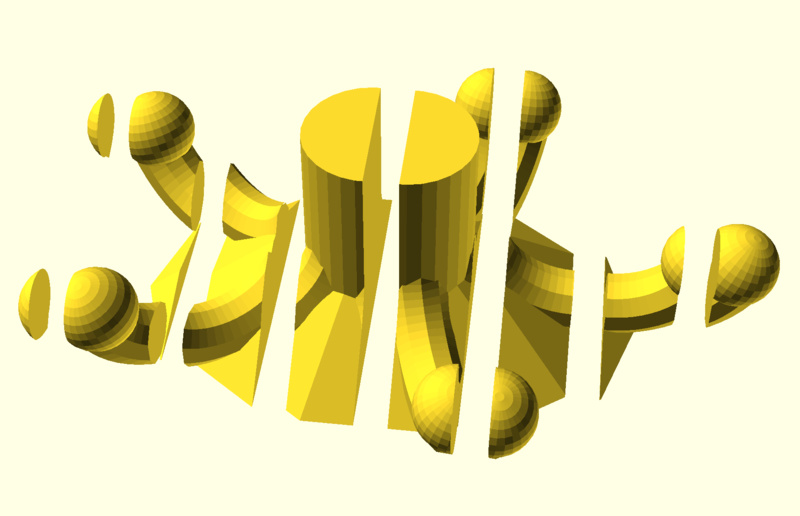

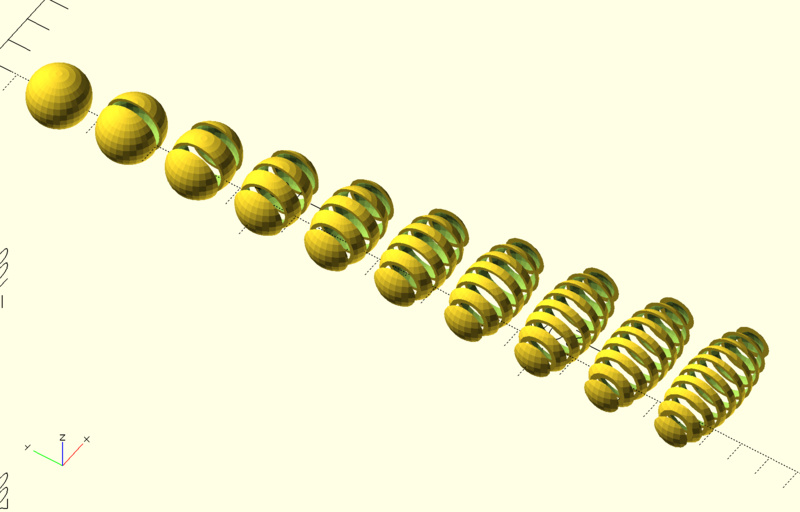

Asploder (helper)

This is an OpenSCAD library to help with doing ’exploded’ versions of arbitrary models.

Not currently released, but maybe…

2025-12

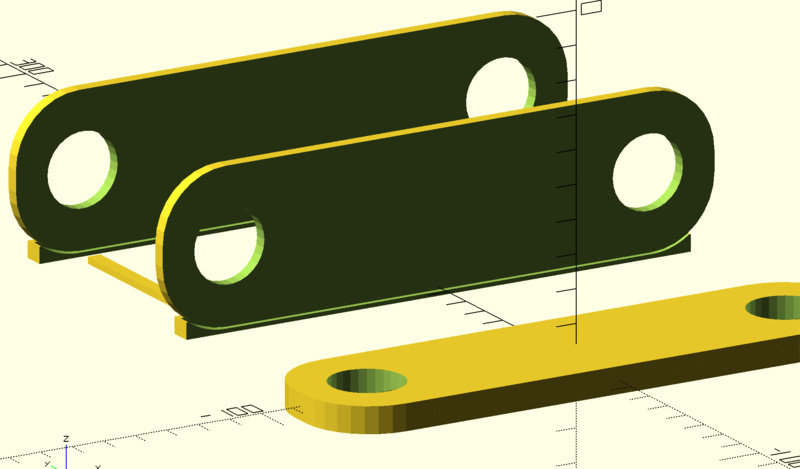

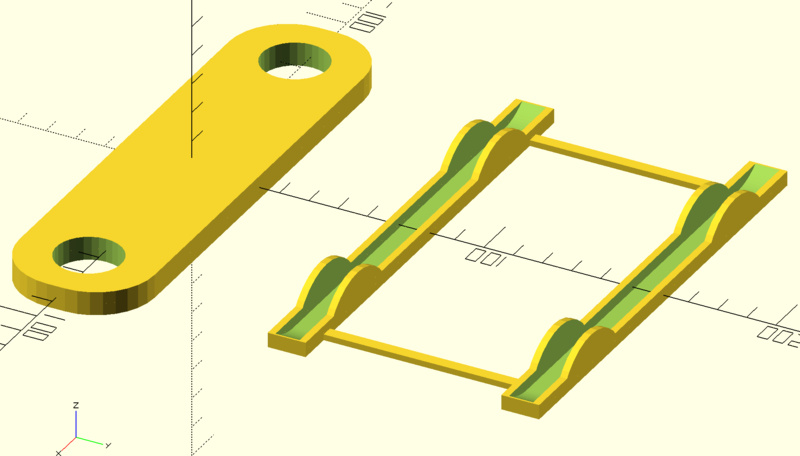

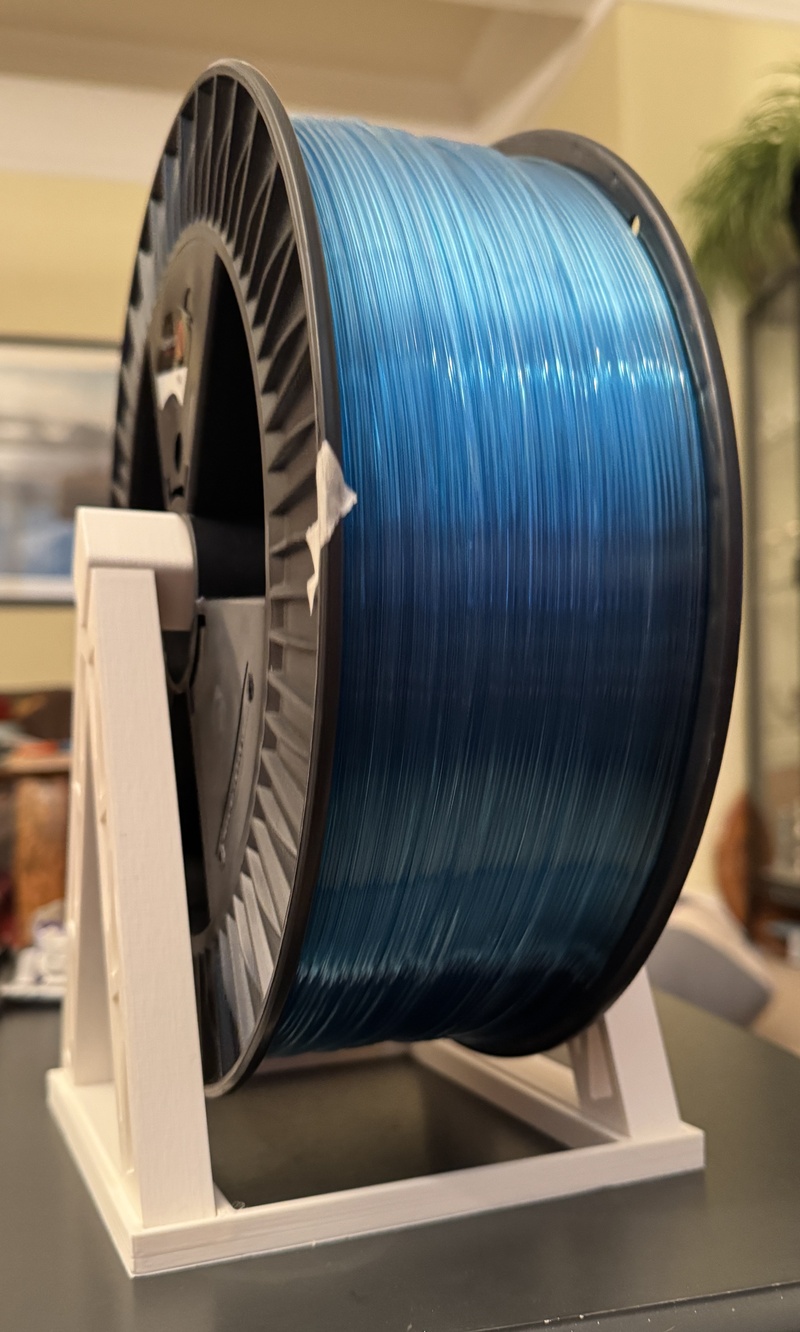

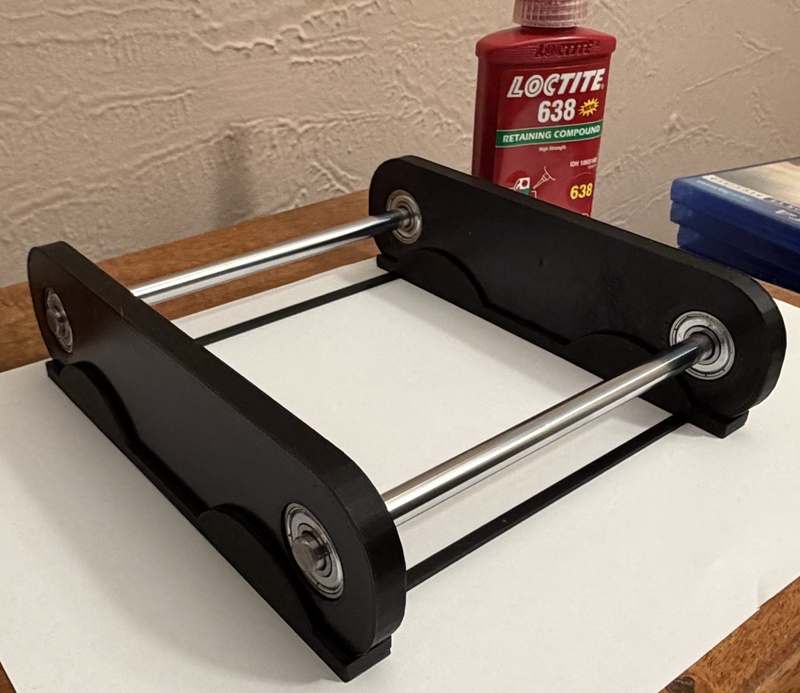

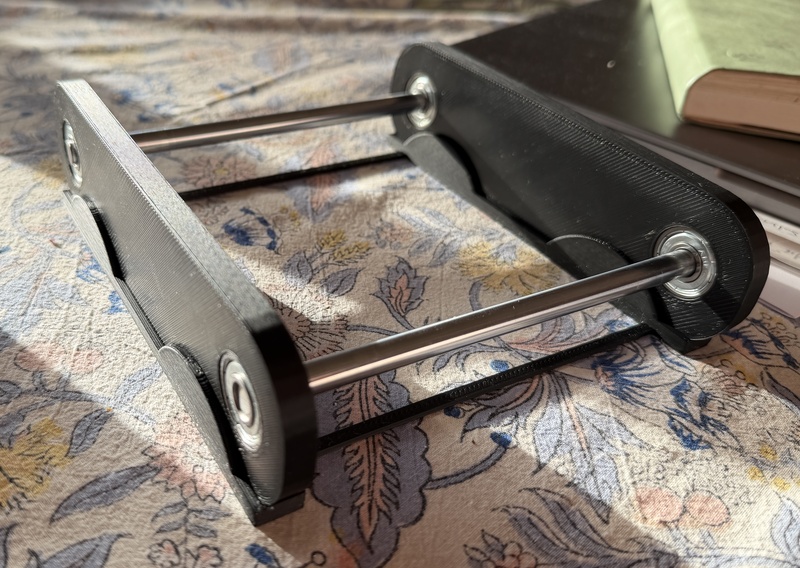

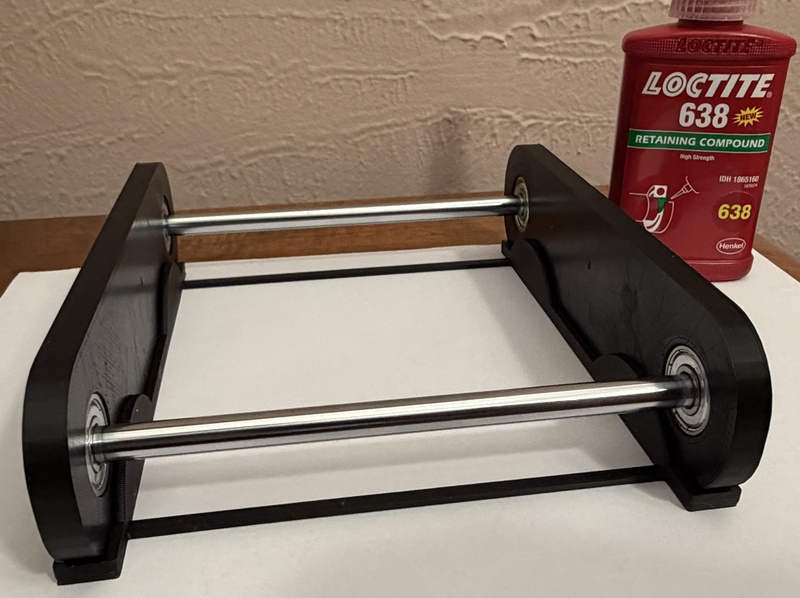

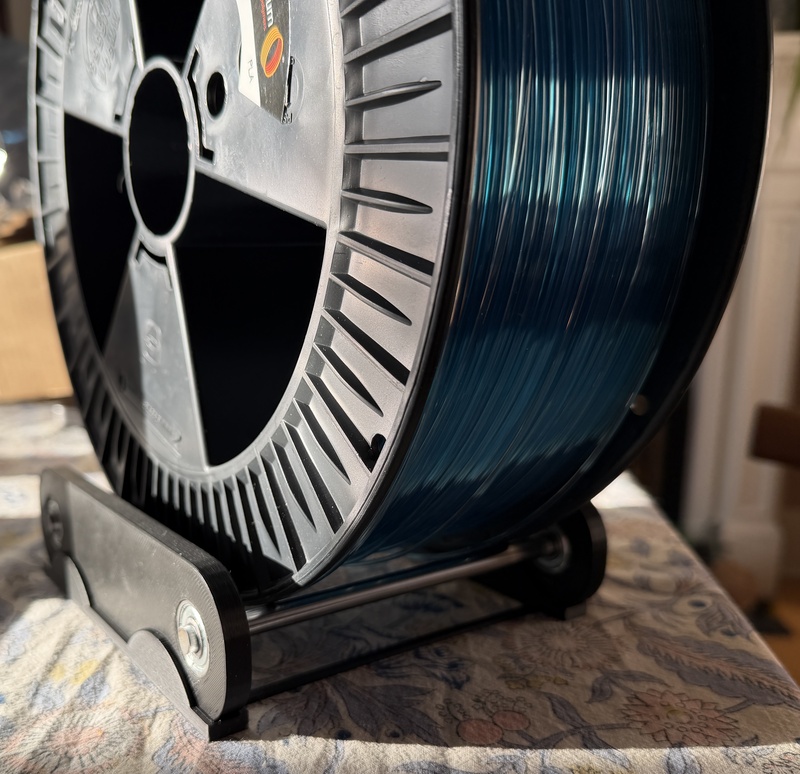

Spool stand (version 3)

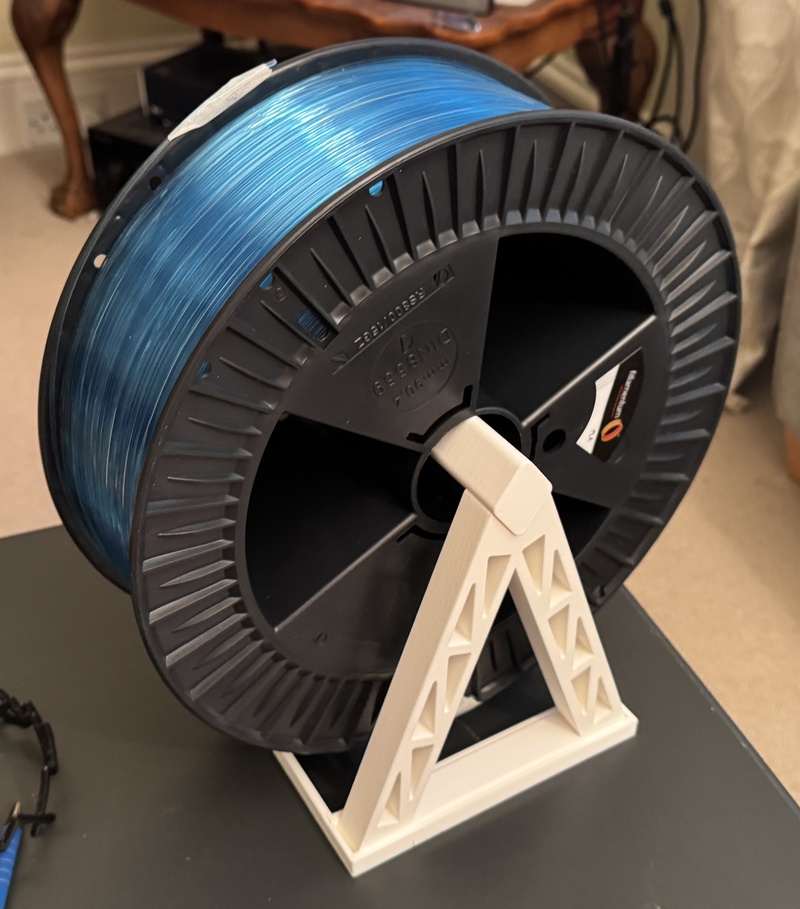

After the structural fail of version 1 and the over-engineered version 2, this is a happy thing.

Extra parts:

  • 2 x linear rod (8mm x 200mm)
  • 4 x 608ZZ ball bearing (superglued into PLA holes, to hold rods)
  • Loctite 638 anaerobic retaining compound (to attach rods to bearings)
  • sticky gel feet

The design includes a stand but that part isn’t really necessary and I didn’t use it. I just put some gel feet under the two side parts to increase friction against the desk (stops the spool stand moving).

2025-11
